Bomag BOMAG BF 700 C-3 L Asphalt Paver

Specifications	Numbers
Engine Model	Deutz TCD 2012 L06
Operation weight	21950
Type	Crawler
Performation	700 t/h
Basic width retracted	3000 - 6000mm
Maximum working with	9000 mm
Working speed	0-25m/min

Advantage of the Bomag BF 700 C-3 L Asphalt Paver

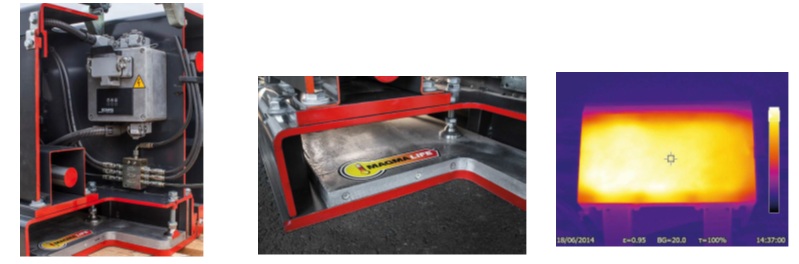

The BF 700 C-3 L is the third-generation asphalt paver designed specifically for the Asian market. It continues to leverage BOMAG’s strengths: such as the “MAGMALIFE” heating system: Aluminum heating plates with integrated heating elements ensure the machine reaches optimal working conditions quickly.
- Long lifespan: over 3000 hours of durability
- Even heating distribution: Ensures consistent paving quality
- Fast heating: Reach operation temperature in just 20 à 25 minutes, 50% faster than other asphalt paver

The rapid heating system reduces waiting time for the machine to reach stable operating conditions, saving both time and costs.

Additionally, based on extensive market research conducted by BOMAG experts, the BF 700 C-3 L has been improved to better suit the demands of the Asian market:

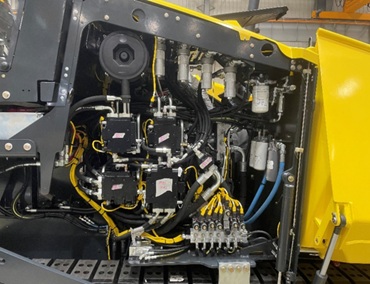

Maintenance and service

The entire hydraulic pump system, filters, engine oil filter, and air filter are easily accessible from the right side of the machine. This facilitates maintenance and replacement of parts when necessary. Convenient replacement allows for easy operation and saves time and effort for the operator.

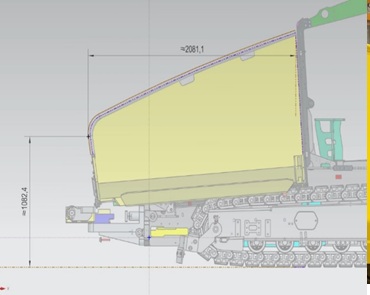

Hopper

The longer material hopper, combined with flexibility—the ability to adjust the length of the push roller—makes it suitable for all types of trucks in the Asian market, ensuring better force distribution when pushing trucks around curves or corners. The large storage compartment also helps reduce the rate of material cooling while waiting for other trucks to arrive

L₂ = 2170~2320 mm

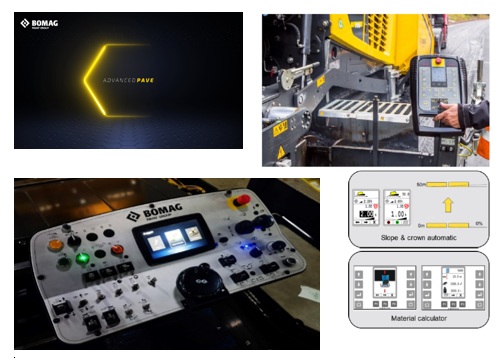

Operation

Operating the machine is very simple with the electronic system and the A-PAVE support software developed by BOMAG, which makes the work more precise and easier.

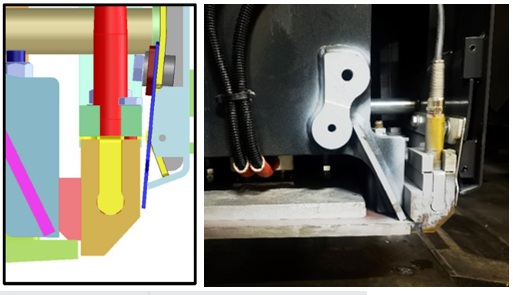

Screed

The improved design ensures that the pulling force is always applied to the compaction plate, which helps prevent gaps during operation and avoids material from getting into the compaction plate. The screed table has the largest length and width in the industry, helping create a smoother and more beautiful surface after paving.

Weight
Operating weight	kg	21950

Travel speed	Km/h	0 – 4
Working speed	m/ph	0 – 25
Engine
Manufacturer		DEUTZ
Engine Type		TCD 2012 L06
Number of cylinders		6
Power (ISO 3046)	kW	128
Emission standard		Stage III/Tier 3
Hopper
Capacity	m³	7.7
Width (open wings)	mm	3.360
Width (close wings)	mm	2.490
Length	mm	2.090

Basic spread width	mm	3000-6000
Extended spread width	mm	9000
Spread thin	mm	300
Compaction plate width	mm	400
Material heating method		Điện
Vibration frequency	Hz	20 – 58
Compaction plate weight	Kg	4900
